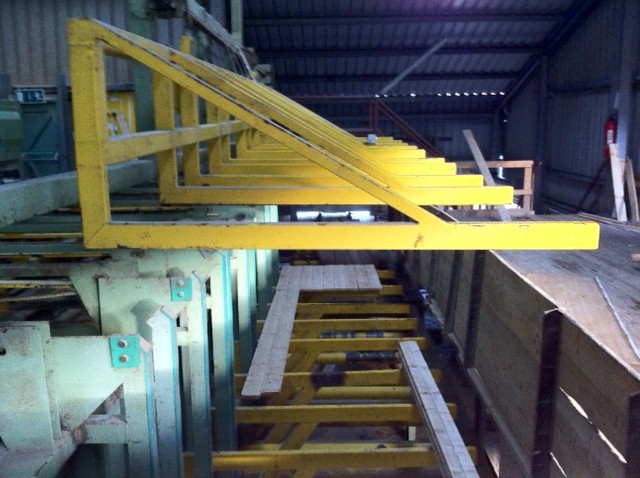

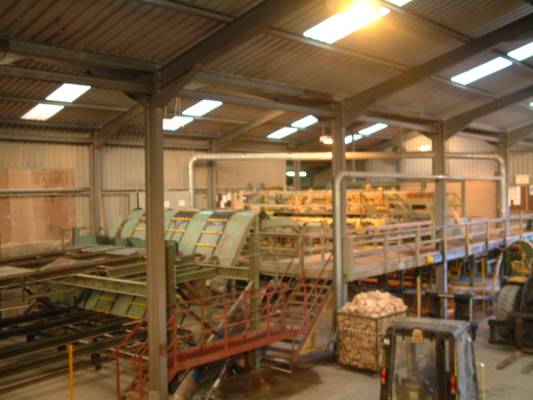

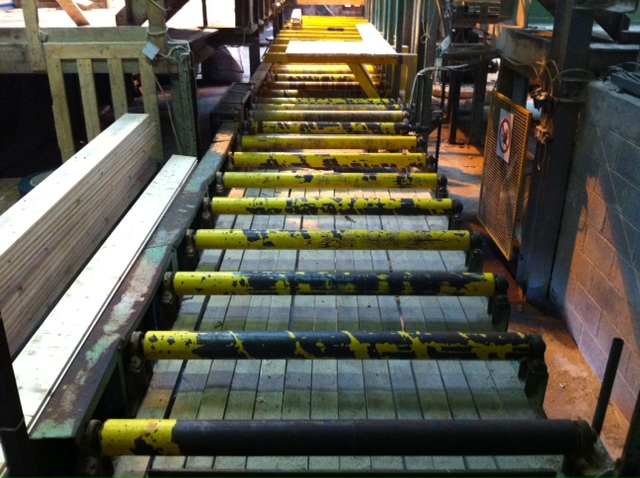

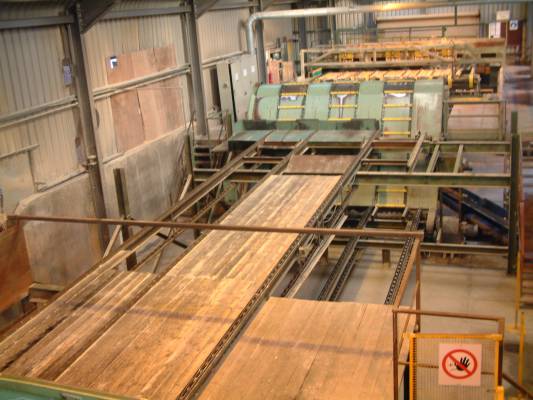

Complete Packing Line with Automatic Stacker
Jarme OY Complete Packing Line with Automatic Stacker
This system includes a facility for rejecting poor quality boards by activating reject arms via the operators control panel.
There is an off-cut conveyor belt below the crosscut saws to facilitate the carrying of waste to a drum chipper.
Overall length: 25m
Overall width: 6m

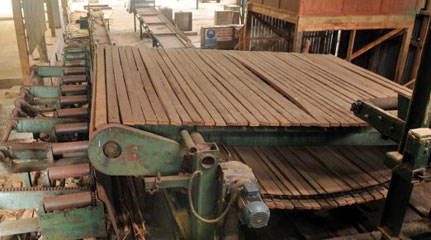

Two-Tier Transfer Chains
In-feed to Crosscut saws includingsingulator
Finished Bales Carrier

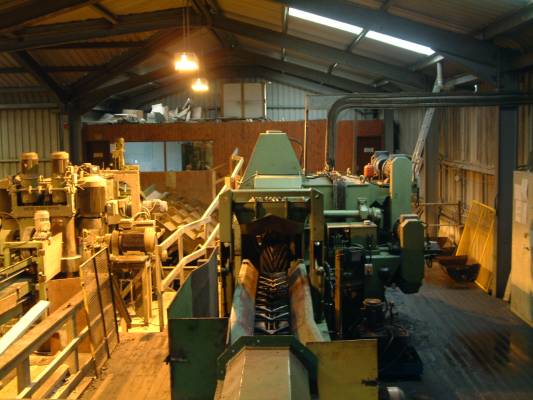

Wadkin XE220 6 Head Planer Moulder
Wadkin XE220 6 Head Planer Moulder Through-Feed with Short Infeed and 4 Roll Push Feed Works.
Variable speed drive: 10 – 60M/Min
Feed motor: 11kw (15hp)
Cardan shaft through feedworks as well as full width driven bed rollers
Max size of finished timer: 220 x 120mm
Min size of finished timber: 15 x 6mm
Spindle Speeds: 6000 rpm
Chromed bed plates throughout
Automatic bed lubrication
Automatic hydraulic jointers to all heads
Braked motors to all heads
Lift up noise suppression safety cover
